urun-AAC

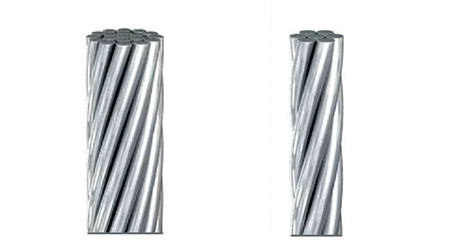

AAC

All Aluminium Conductor

Unit System: Metric
TS EN 50182 /(TS IEC 61089)
Related Standard

bes_catalogue

General Information

AAC All Aluminium Conductors General Information

AAC conductors are composed of several wires stranded over each layer.

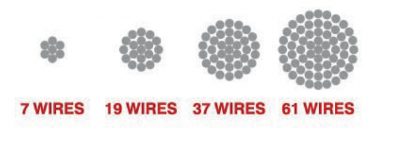

All wires have some outer dinameter. Most common AAC conductors are composed of 7, 19, 37 and

61 wires. AAC conductors that are used for insulated cable as compacted

will be composed of various number of wires.





Applications

  • Substations
  • Electricity Distrubition Lines
  • Insulated Cables as Cable Core

Technical Data

Code Number

mm²

 Canadian Standart Cross Sectional Area Number and Area of Wires Diameter of Conductor
mm		 Rated Strenght D.C Resistance
ohm/km		 Unit Weight
kg/km
Type Section Total Conductor

mm²

 Cupper Equivelant

mm²

 Number Diameter
mm
21 Rose 4 21.14 13.30 7 1.96 5.88 416 1.356 57.8
27 Lily 3 26.60 16.73 7 2.2 6.6 514 1.078 72.8
34 Iris 2 33.53 21.09 7 2.47 7.41 637 0.854 91.8
42 Pansy 1 42.49 26.72 7 2.78 8.34 777 0.674 116.8
53 Popy 1/0 53.48 33.63 7 3.12 9.36 941 0.535 146.4
67 Aster 2/0 67.14 42.22 7 3.5 10.5 1185 0.425 184.4
85 Phlox 3/0 84.91 53.40 7 3.93 11.59 1435 0.337 232.5
107 Oxlip 4/0 107.38 67.53 7 4.42 13.26 1814 0.266 294
126 Valerian 250000 126.38 79.46 19 2.91 14.55 2261 0.228 347.5
135 Daisy 266800 135.28 85.07 19 3.01 15.05 2421 0.213 372.1
152 Peony 300000 151.28 95.47 19 3.19 15.95 2671 0.190 417.7
urun-AAC

AAC

All Aluminum Conductor

Unit System: Metric
DIN 48201/EN 20182
Related Standard

Technical Data

Code New Code Section
mm		 Composition Diameter
mm		 Rated Strenght
kN		 Electrical Resistance
ohm/km		 Cable Weight
kg/km		 Capacity 1(A)
16 16-AL1 15,89 7 1,7 5,1 2,84 1,802 44 110
25 24-AL1 24,25 7 2,1 6,3 4,17 1,181 67 145
35 34-AL1 34,46 7 2,5 7,5 5,74 0,833 94 180
50 49-AL1 49,48 7 3 9 7,95 0,579 135 225
50 48-AL1 48,36 19 1,8 9 8,44 0,575 133 225
70 66-AL1 65,82 19 2,1 10,5 11,25 0,437 181 270
95 93-AL1 93,27 19 2,5 12,5 15,65 0,309 256 340
120 117-AL1 117 19 2,8 14 18,75 0,246 322 390
150 147-AL1 147,1 37 2,25 15,7 25,25 0,196 406 455
185 182-AL1 181,6 37 2,5 17,5 30,45 0,159 501 520
240 243-AL1 242,5 61 2,25 20,2 39,35 0,119 670 625
300 299-AL1 299,4 61 2,5 22,5 47,55 0,097 827 710
