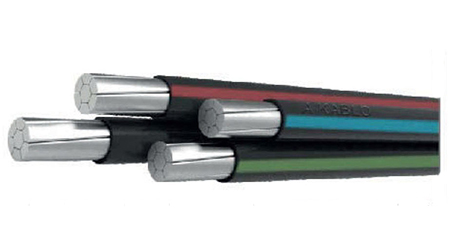

0,6/1 kV LV Aerial Bundled Cables

Number and

rememberance sectional

area of the conductor

Insulated Conductors Wire Hanger Cable
Number and

cross section

No of Wires Nominal Diameter

of Conductor

Conductor DC

Resistance at

20C

Current Carrying

Capacity

Number and Cross

Section

Current Carrying

Capacity

Average Diameter

Wire Hangers

Breaking Load Conductor DC

Resistance at

20C

Twisted Diameter Net Weight

(approx)

mm mm pcs mm ohm/km A mm A mm kN ohm/km mm kg/km
1×16 1×16 7 4,60 1,910 60 64
1×25 1×25 7 5,90 1,200 112 93
1×35 1×35 7 6,90 0,868 138 122
1×50 1×50 7 8,10 0,641 168 164
1×70 1×70 19 9,70 0,443 213 225
1×95 1×95 19 11,40 0,320 258 314
1×120 1×120 19 12,80 0,253 300 385
1×150 1×150 19 14×10 0,206 344 462
2×16 2×16 7 4,60 1<1,910 60 15 128
2×25 2×25 7 5,90 1,200 112 17 187
2×50 2×50 7 8,10 0,641 168 22 328
2×70 2×70 19 9,70 0,443 213 25 450
3×16 3×16 7 4,60 1,910 60 16 192
3×25 3×25 7 5,90 1,200 112 19 280
3×35 3×35 7 6,90 0,868 138 21 365
3×50 3×50 7 8,10 0,641 168 24 492
3×70 3×70 19 9,70 0,443 213 28 675
3×95 3×95 19 11,40 0,320 258 32 943
3×120 3×120 19 12,80 0,253 300 35 1156
3×150 3×150 19 14,10 0,206 344 38 1385
4×16 4×16 7 4,60 1,910 60 18 256
4×25 4×25 7 5,90 1,200 112 22 374
4×35 4×35 7 6,90 0,868 138 26 487
4×50 4×50 7 8,10 0,641 168 27 656
4×70 4×70 19 9,70 0,443 213 31 900
4×95 4×95 19 11,40 0,320 258 36 1257
4×120 4×120 19 12,80 0,253 300 40 1542
4×150 4×150 19 14,10 0,206 344 43 1847
>3×25+16 3×25 7 5,90 1,200 112 5,00 4,72 2,210 20 351
3×35+16 3×35 7 6,90 0,868 138 5,00 4,72 2,210 22 436
3×50+25 3×50 7 8,10 0,641 168 5,90 7,4 1,380 25 590
3×70+35 3×70 19 9,70 0,443 213 6,90 10,3 0,186 29 802
3×95+50 3×95 19 11,40 0,320 258 8,20 14,2 0,720 34 1114
3x120x70 3×120 19 12,80 0,253 300 9,80 20,6 0,493 37 1392
3×150+70 3×150 19 14,10 0,206 344 9,80 20,6 0,493 40 1621
3×95+70 3×95 19 11,50 0,320 258 9,80 20,6 0,500 44 1200
